LED car headlight
  • Description

    For automotive headlight lighting applications, the rising awareness of road safety has prompted the demand for smart lighting. WINSOK has a variety of products that meet automotive regulations to provide solutions for automotive lighting applications.


    LED car headlight

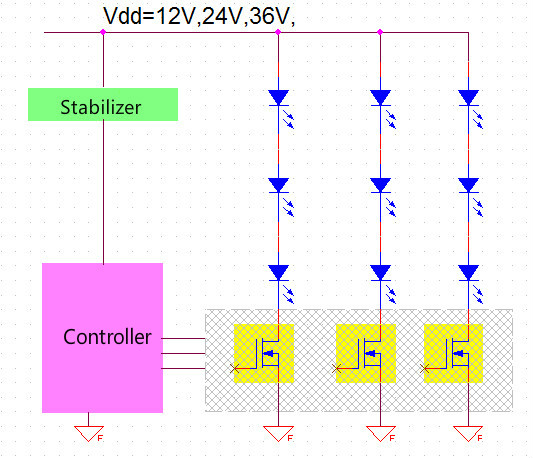

    LCar headlight circuit

  • Recommended Devices
    Part NumberTypePackageVDS (V)VGS ±(V)ID(A)VGS(th) (max V)RDS(ON) @ 10V Typ. (mΩ)RDS(ON) @ 4.5V Typ. (mΩ)RDS(ON) @ 2.5V Typ. (mΩ)RDS(ON) @ 1.8V Typ. (mΩ)Qg (nC)Ciss(pF)
    WSD3028DNN-ChannelDFN3X3-83020192.52232--4.1360
    WSD3030DNN-ChannelDFN3X3-83020342.51013--6.1760
    WSD3050DNN-ChannelDFN3X3-83020502.56.78.2--101200
    WSD3060DNN-ChannelDFN3X3-83020602.54.75.8--201500
    WSD100N06GDN56N-ChannelDFN5X6-860201002.53.04.4--583458
    WSD3040DN56N-ChannelDFN5X6-83020502.579.2--16930
    WSD3042DN56N-ChannelDFN5X6-83020401.399.6--161150
    WSP4406N-ChannelSOP-83020122.59.513--6.3770
    WSP4410N-ChannelSOP-83020202.546--12.91700
    WSP4430N-ChannelSOP-8302020246--28.53234
